GHL40LC/50C HEAVY DUTY VEICLE LIFT

◆4000kg/5000kg lifting capacity;

◆Clear floor design, can make the operator in the vehicle under working more easily;

◆Double hydraulic cylinder direct drive, without chains, lifting and lowering smooth;

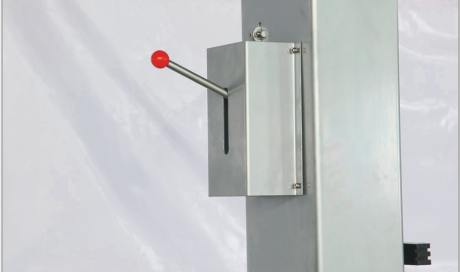

◆Manual release from one side;

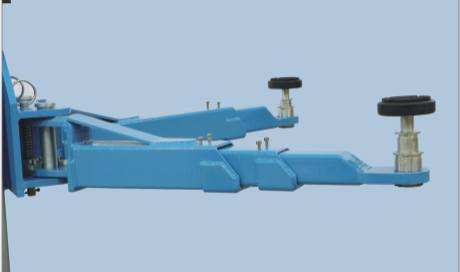

◆Heavy duty lifting arms;

◆Aluminum shell motor, prevents overheated;

◆24V height limit switch;

◆Feet-protection guardrails and door-opening protection rubber pad;

◆Single spiral pallet and SUV & truck adapter (8 pcs) standard configuration;

◆Hydraulic pressure pre-set preventing from lifting vehicle with exceeding rated loads;

◆It has adopted 115% dynamic loading capacity and 150% static loading capacity tested;

◆CE certificated.




·

Technical Specification

 Lifting capacity  4000/5000kg
 Lifting height  1900mm
 Minimum height  95mm
 Lifting time  55s
 Overall height  3780/3900mm
 Overall width  3460/3640mm
 Width between columns  2820/3000mm
 Packing size  2900*530*770/2900*560*860mm
 Weight  725kg     /857kg
 22 units can be loaded into one 20”container
  Details

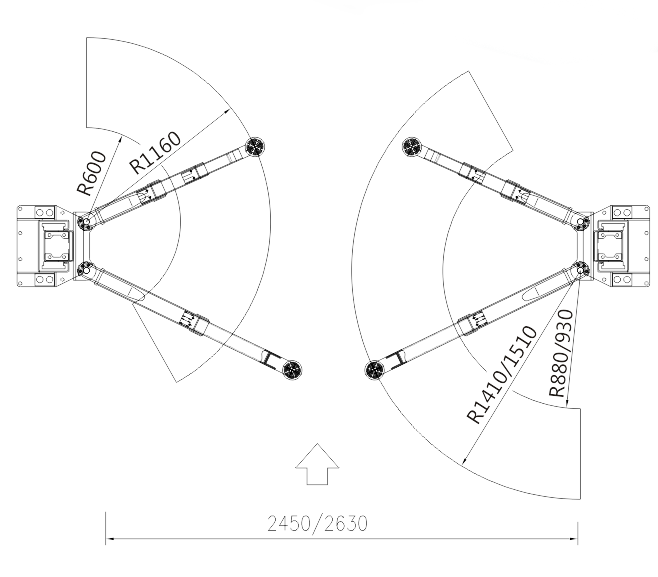

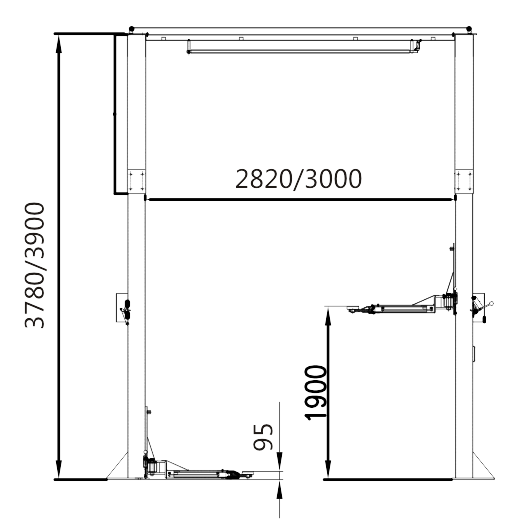

  Packing size and line drawings
