GHL40CE/50CE HEAVY DUTY VEHICLE LIFT

◆4000kg/5000kg lifting capacity;

◆Clear floor design, can make the operator in the vehicle under working more easily;

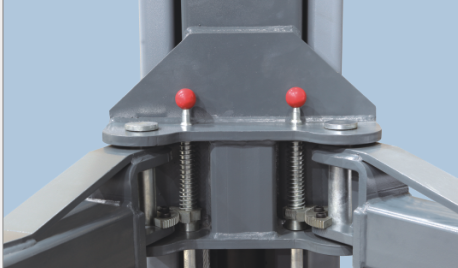

◆Electrical release system, electromagnet operated release;

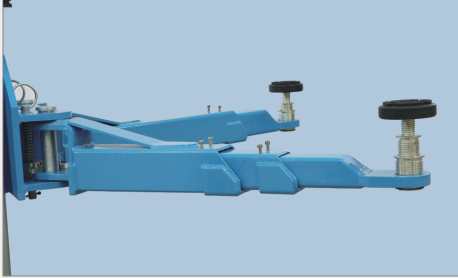

◆Heavy duty lifting arms;

◆Aluminum shell motor, prevents overheated;

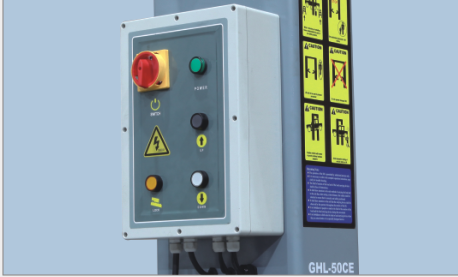

◆Operation control system with 24V safety voltage;

◆24V height limit switch;

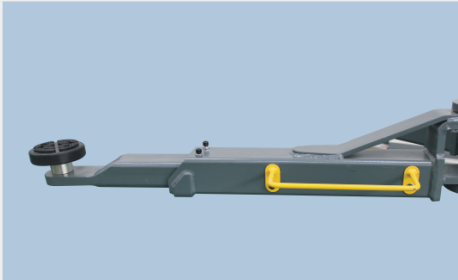

◆Feet-protection guardrails and door-opening protection rubber pad;

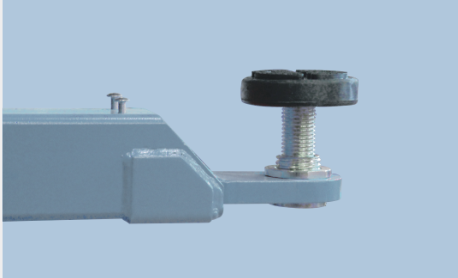

◆Single spiral pallet and truck adapter as standard configuration;

◆Hydraulic pressure pre-set preventing from lifting vehicle with exceeding rated loads;

◆Double hydraulic cylinder direct drive;

◆It has adopted 115% dynamic loading capacity and 150% static loading capacity tested;

◆CE certificated.




·

Technical Specification

 Lifting capacity  4000/5000kg
 Lifting height  1900mm
 Minimum height  95mm
 Overall height  3780/3900mm
 Overall width  3460/3640mm
 Width between columns  2820/3000mm
 Lifting time  55-60s
 Motor power  2.2/3.0kw
 Power supply  220V, 240V, 380V, 415V
 Weight  725kg/835kg
 Packing size  2900*530*770/3200*560*860mm
 22 units can be loaded into one 20”container
  Details

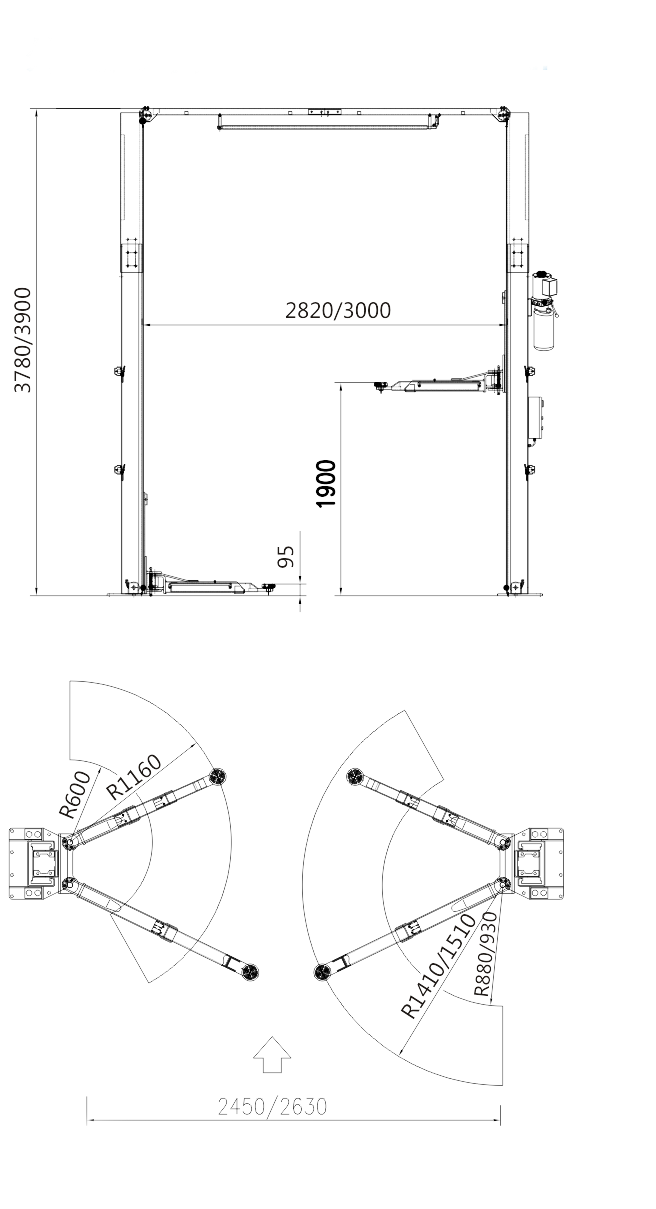

  Packing size and line drawings
