GHL32CC/40CC ASYMMETRIC COLUMN CLEAR FLOOR LIFT

◆Clear floor design makes easy working under beneath the vehicle.

◆By two cylinder, plate and wire rope chain balance system, lifting off and landing smooth.

◆Hydraulic power unit configuration throttling device, can always adjust the rate of decline.

◆Manual lock release from two sides.

◆With 24V limit switch. asymmetric column allows wider drive through clearance.

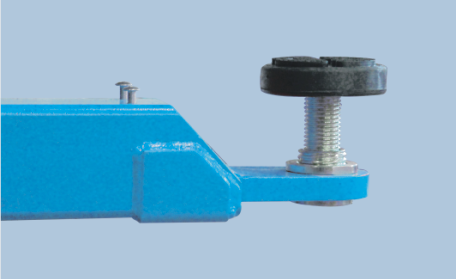

◆Rubber support pad with spiral adjust the height and in stages adjust the height, optional.

◆Rubber pad door-opening protection.

◆Toe protection.

◆Trucks adapters can optional.

◆Have adopted115% dynamic and 150% static loading tested.

◆CE approved.




·

Technical Specification

 Lifting capacity  3200KG/4000KG
 Lifting height  1900 mm
 Minimum height  95mm
 Lifting time  40-45s  /50s
 Overall height  3726mm
 Overall width   3420mm
 Width between columns  2820mm
 Motor power  2.2kw
 Power supply  220V/240V/380V/415V
 Weight  667kg/711kg
 Packing size  2900*530*770mm
 24 units can be loaded into one 20”container
  Details

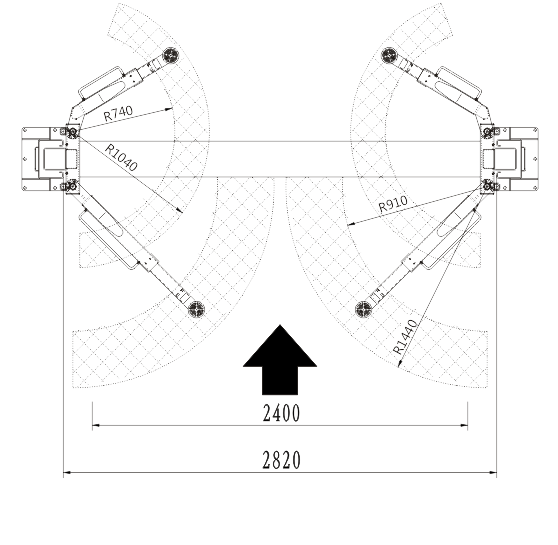

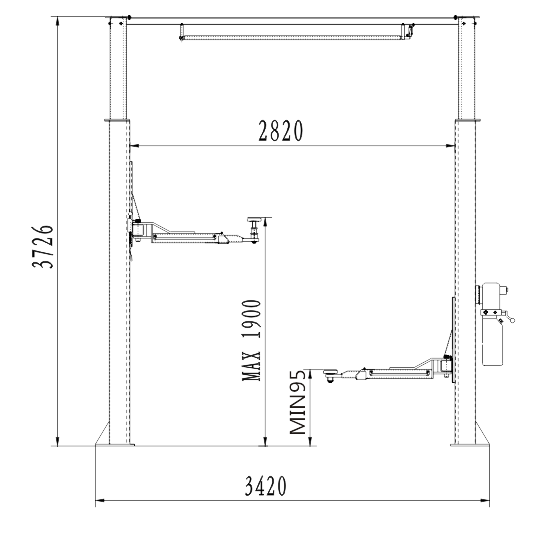

  Packing size and line drawings
