GHL40CF/50CF DOUBLE S HEAVY DUTY VEHICLE LIFT

◆4000kg/5000kg lifting capacity;

◆Clear floor design, can make the operator in the vehicle under working more easily;

◆Double hydraulic cylinder direct drive, without chains;

◆The column double S unique design, beautiful appearance.

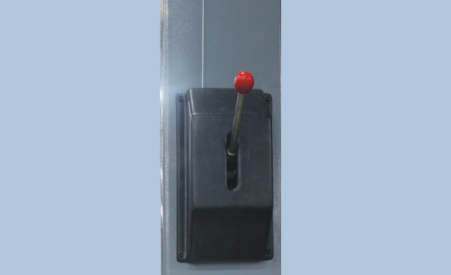

◆Manual release from one side;

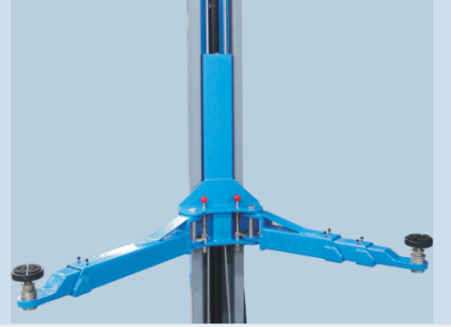

◆Heavy duty lifting arms;

◆Aluminum shell motor, prevents overheated;

◆Operation control system with 24V safety voltage;

◆24V height limit switch;

◆Feet-protection guardrails and door-opening protection rubber pad;

◆Truck adapter (8pcs) standard configuration;

◆Hydraulic pressure pre-set preventing from lifting vehicle with exceeding rated loads;

◆It has adopted 115% dynamic loading capacity and 150% static loading capacity tested;

◆CE certificated.




·

Technical Specification

 Lifting capacity  4000/5000kg
 Lifting height  1900mm
 Minimum height  95mm
 Overall height  3900mm
 Overall width  3560mm
 Width between columns  3000mm
 Lifting time  55-60s
 Motor power  2.2/3.0kw
 Power supply  220v,240v,380v.415v
 Weight  747/857kg
 Packing size  2900*530*770mm
 22 units can be loaded into one 20”container
  Details

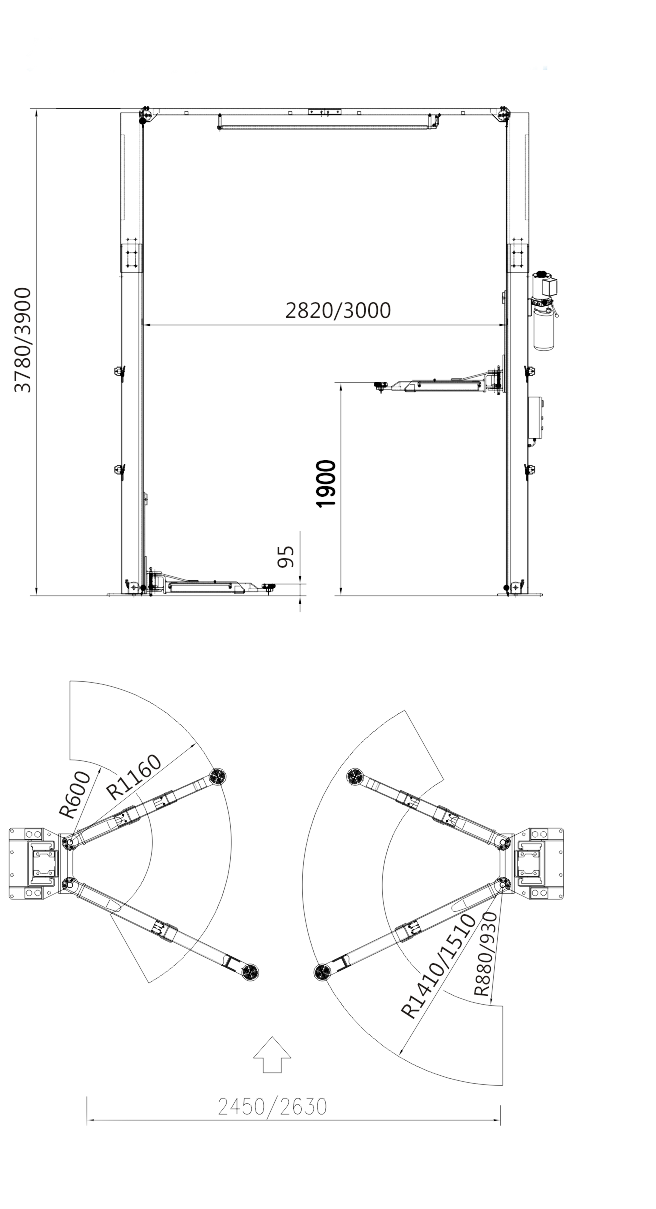

  Packing size and line drawings

  Optional Parts
