GHL435E/440E/450E/455E FOUR POST LIFT ELECTRICAL RELEASE

◆Adopt hydraulic cylinder drive, rope drive, quiet and smooth lifting.

◆Hydraulic power unit configuration throttling device, they can always adjust the rate of decline.

◆Electrical Release.

◆Adopt electrical Release, four-point locking system. Easy tooperate, can be locked in the desired height of operations, safety and reliability.

◆With wire control security lock set with a wire rope fracture protection, operational safety.

◆Runway spacing is adjustable for different wheel base vehicles.

◆With the second lift pulley.




·

Technical Specification

 Lifting capacity  3500kg    /4200kg   /5000kg/5500kg
 Lifting height  1800mm
 Minimum height  220/220/260/260mm
 Overall Length  5660/5860/5860/6560mm
 Overall width  3150/3230/3230/3230mm
 Width between columns  2750/2930/2930/2930mm
 Runway length  4250/4800/4800/5500mm
 Runway width  520/520/500/500mm
 Within the runway distance  860~1200mm
 Central Jack height  450mm
 Motor Power  2.2/2.2/3.0/3.0KW
 Power supply  220V/240V/380V/415V
 Weight  1494/1714/1934/2100kg
 Packing size  4570/5100/5100/5700*560*730
 units can be loaded into one 20”container  12

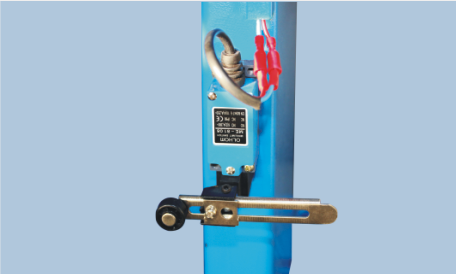

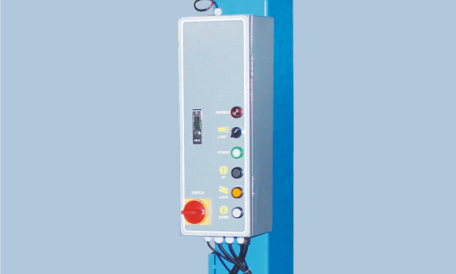

  Details

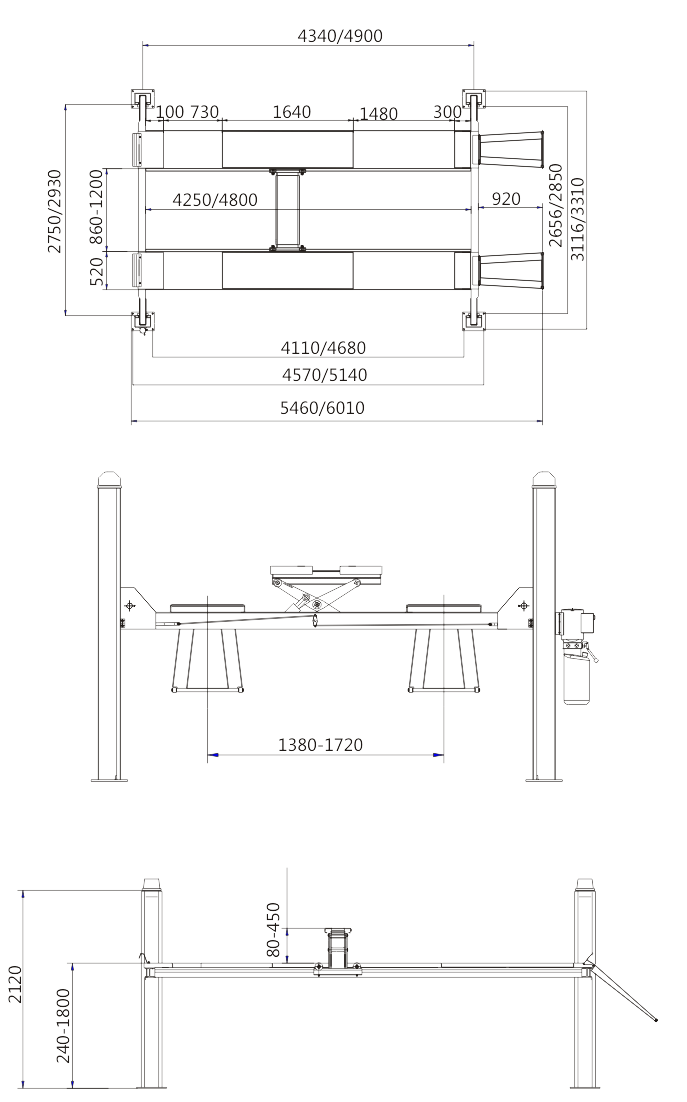

  Packing size and line drawings

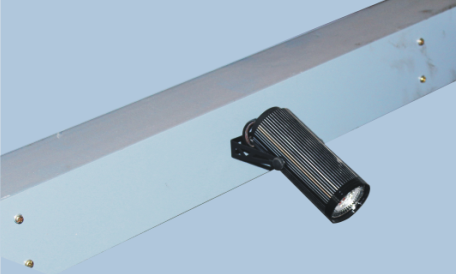

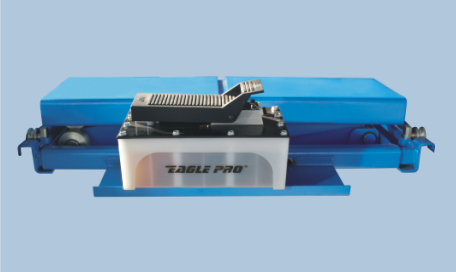

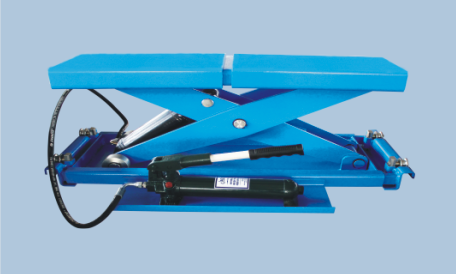

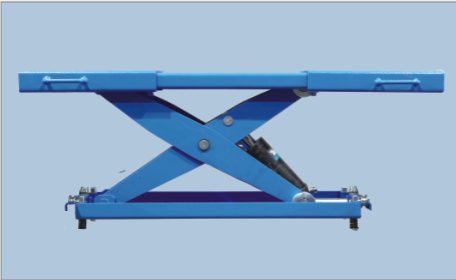

  Optional Parts
