GHB80 FULL AUTOMATIC 3D WHEEL BALANCER

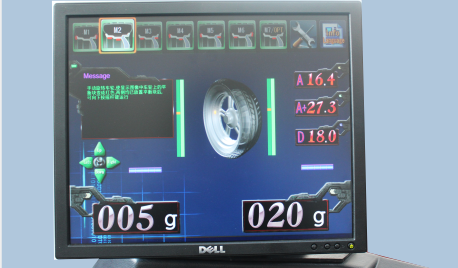

◆The 17‘‘ colorized LCD display, friendly interface,

 simple operation;

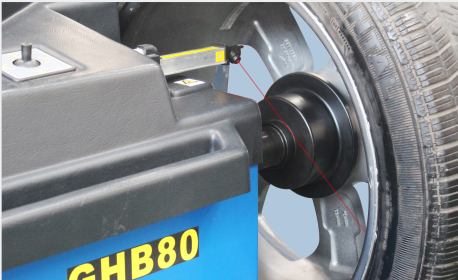

◆Paste the weights location by the laser positioning,

 more accurate;

◆A variety of balance mode, for special rims;

◆SPLIT function;

◆OPT optimization function;

◆Intelligent automatic calibration function;

◆Fault diagnostic function, and prompt the display diagnosis;

◆Can be measured IVECO rims;

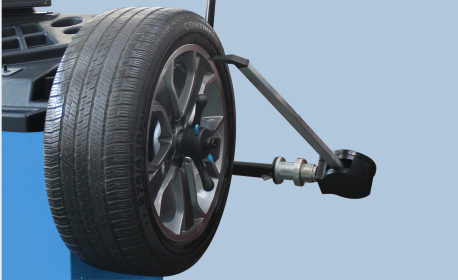

◆Automatic measuring rims width size.





·

Technical Specification

 Max. wheel weight  143LBS(65 kg)
 Rim diameter  10''-25''
 Rim width  1''-17''
 Max. wheel diameter  43''(1100mm)
 Max. wheel width  21''(530mm)
 Balancing speed  ≤140 rpm
 Cycle time  15s
 Balancing precision  0.05 oz/1g
 Power supply  230V/110V, 1Ph, 50/60Hz
 Motor power  0.3kw
 Packing size  1520*1020*1450mm
  Details

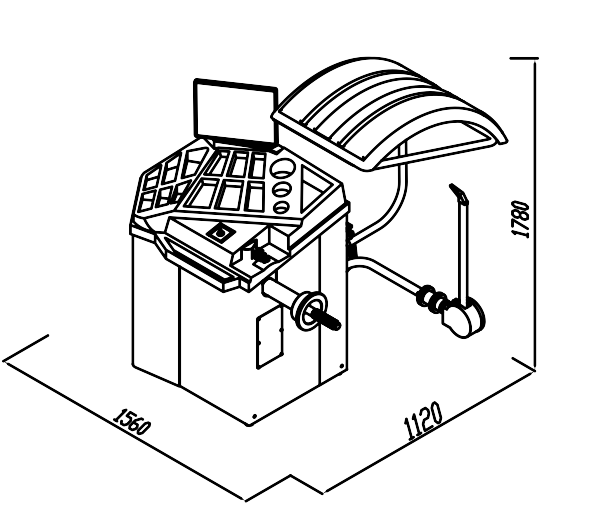

  Packing size and line drawings
