GHT2422AC+L1 TYRE CHANGER

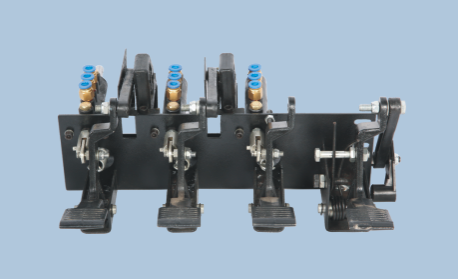

◆Foot valve fine structure can be removed as a whole, operation stably and reliably, and easy maintenance ;

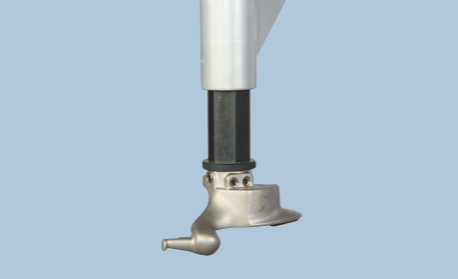

◆Mounting head is made of Alloy steel, Lifetime Warranty;

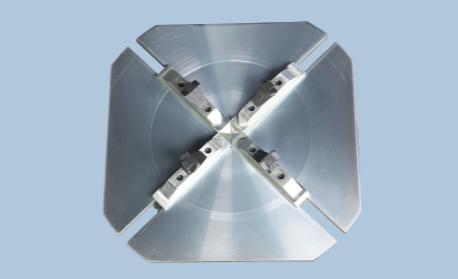

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

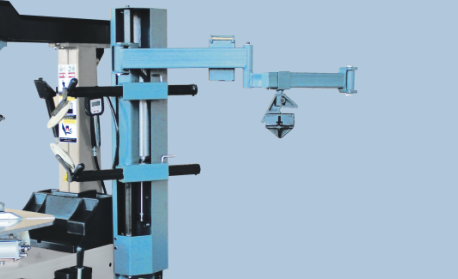

◆pneumatic helper arm, makes the operation saving time and labor;

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping

size.

◆New type of helper which is easy for demounting the flat and hard wall

tyres.

·	Technical Specification

Motor power	1.1kw/0.75kw/0.55kw
Power supply	110V/220V/240V/380V/415V
Max. wheel diameter	44"/1120mm
Max. wheel width	14"/360mm
Outside clamping	10"-21"
Inside clamping	12"-24"

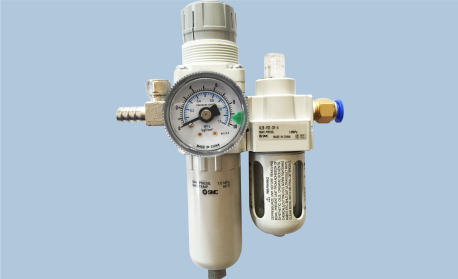

Air supply	8-10bar
Rotation speed	6rpm
Bead breaker force	2500Kg
Noise level	<70dB
Weight	379Kg
Package size	1100950950mm 13301080300mm
20 units can be loaded into one 20”container
