GHT2019 TYRE CHANGER

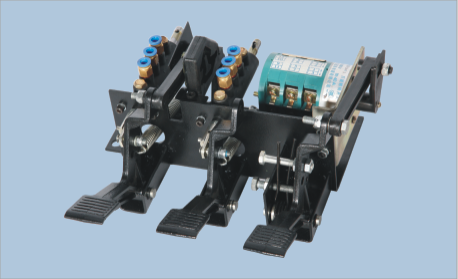

◆Foot valve fine structure can be removed as a whole, operation stably and reliably, and easy maintenance ;

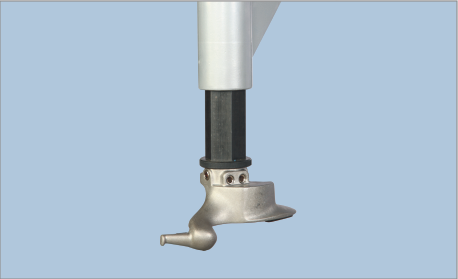

◆Mounting head is made of Alloy steel, Lifetime Warranty;

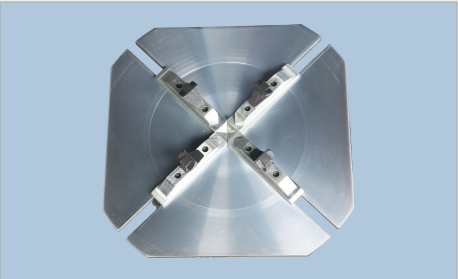

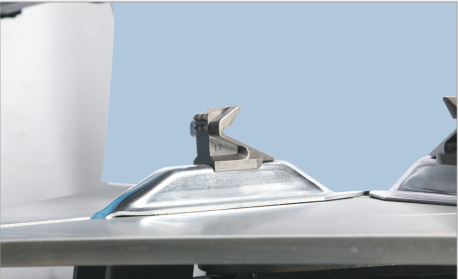

◆Grip jaw is made of Alloy steel , Lifetime Warranty;

◆Adjustable Grip Jaw(option),±2”can be adjusted on the basic clamping size.

·	Technical Specification

Motor power	1.1kw/0.75kw/0.55kw
Power supply	110V/220V/240V/380V/415V
Max. wheel diameter	38"(960mm)
Max. wheel width	11"(280mm)
Outside clamping	10"-18"
Inside clamping	12"-21"

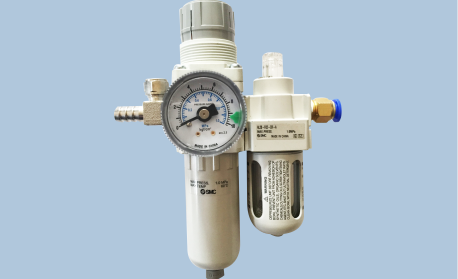

Air supply	8-10bar
Rotation speed	6rpm
Bead breaker force	2500Kg
Noise level	<70dB
Weight	229Kg
Package size	1100950950mm
36 units can be loaded into one 20”container
