◆Low profile operation platform;

◆2-cylinders structure, synchronization system;

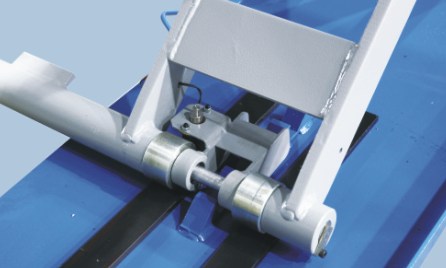

◆Mechanical safety lock to ensure that lift at different heights to  get the absolute security;

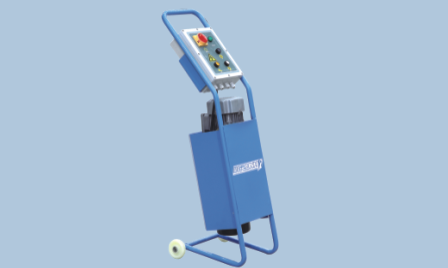

◆ Portable  pump station ,pneumatic electric controlled  release system. flexible and convenient.

◆Optional movable devices, easy to use operator;

◆No installation required.



Technical Specification

 Lifting capacity       3000kg/ 6600lbs
 Max. lifting height  1000mm
 Min. height  105mm
 Lifting time     30S
 Overall length for platform  1400mm
 Overall width for platform     1760mm
 Width between platform     700mm
 Motor power    2.2KW
 Power supply   220V/380V/415V
 Air supply  6-8bar
 Weight  627Kg
 Packing size     1800*1540*200+520*430*1150mm
 30 units can be loaded into one 20”container

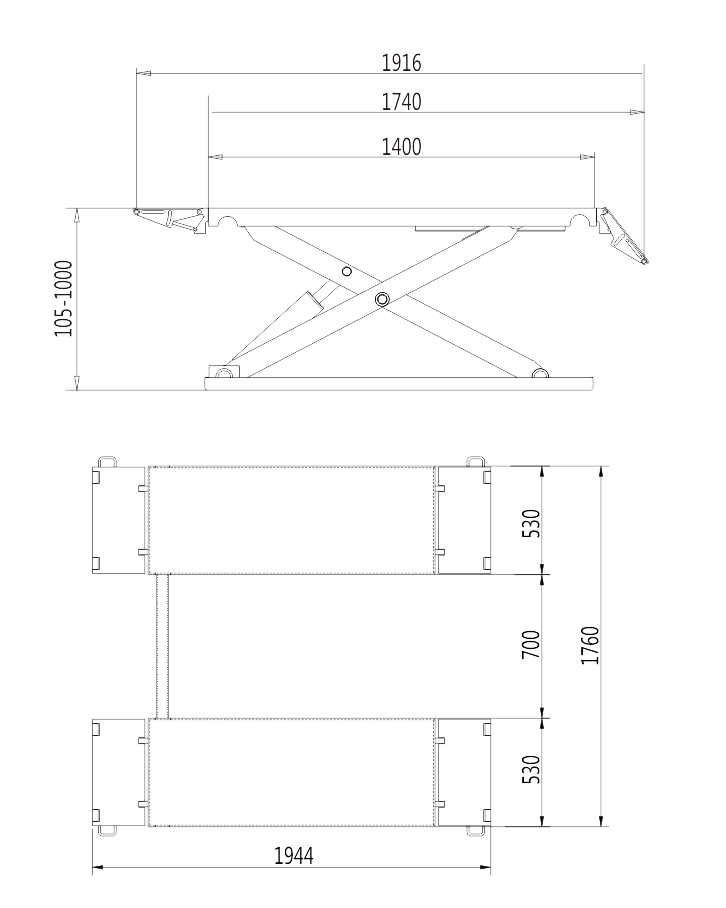

  Packing size and line drawings

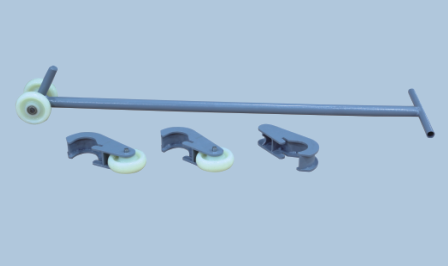

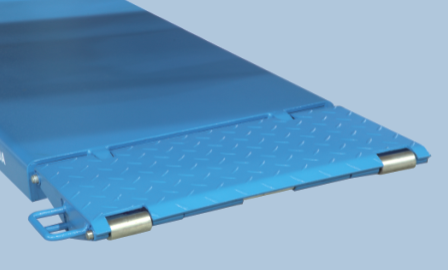

  Optional Parts
