Description of product images and characteristics
  Fs210 LOW-PROFILE ALIGNMENT SCISSOR LIFT

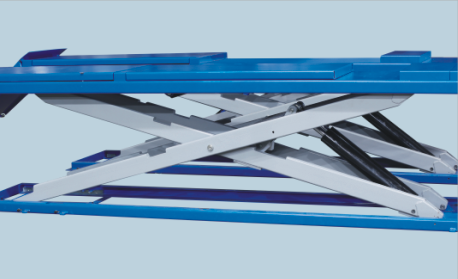

◆ Low-profile multi scissors build, anchor on floor

◆ 4500mm runway for cars of longer wheel base

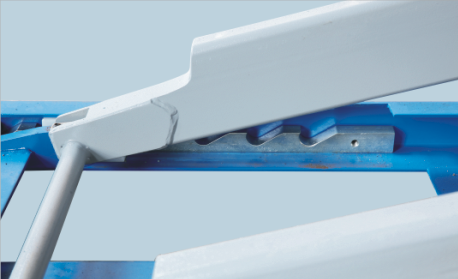

◆ Fine tuned climb-lock for leveling accurateness

◆ Cam drived by 4 cylinders, smooth & durable

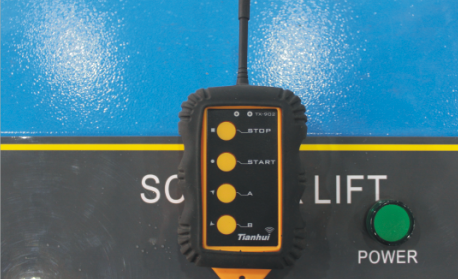

◆ Cost option wireless remote control operation

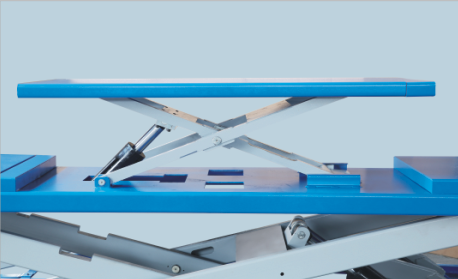

◆ Secondary jack extendable for more car models

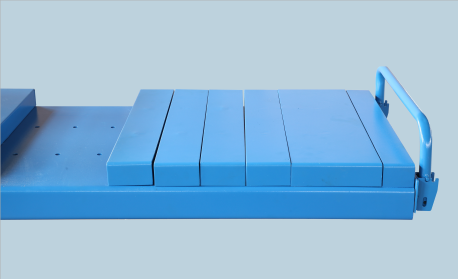

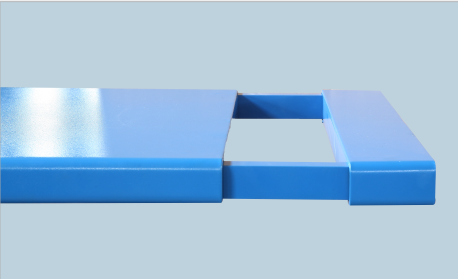

◆ 5 covers in different size, for turn plates in sizes and cars of wheelbases.

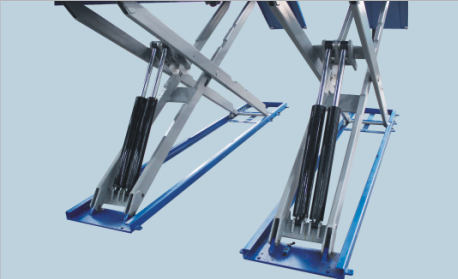

◆ Anchor base made from one-piece metal sheet, smooth operation and leveling adjustment




·

Technical Specification

Lifting capacity 4000kg
Secondary jacking capacity 2500kg
Lifting height 1800mm
Secondary jacking height 400mm
Minimum height 210mm
Runway width 600mm
Runway length 4500mm
Lifting time 60s
Rated hydraulic pressure 20-30Mpa
Air supply 0.6-0.8Mpa
Motor power 2.2kw
Power supply 220V, 240V, 380V, 415V
  Details

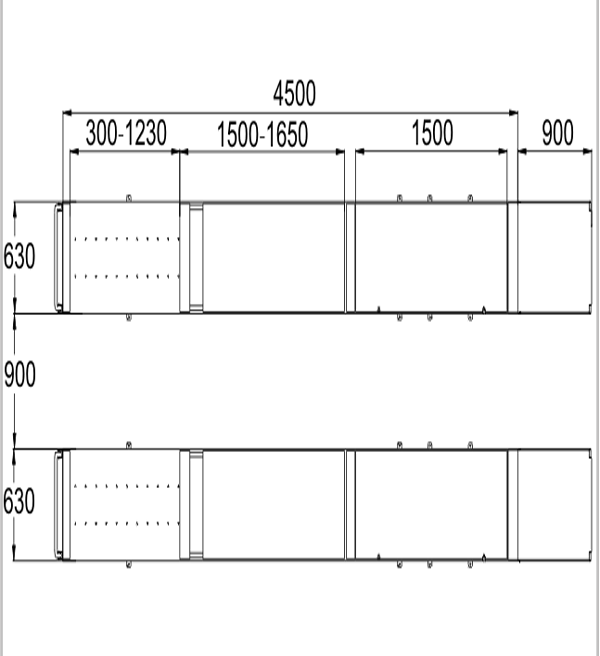

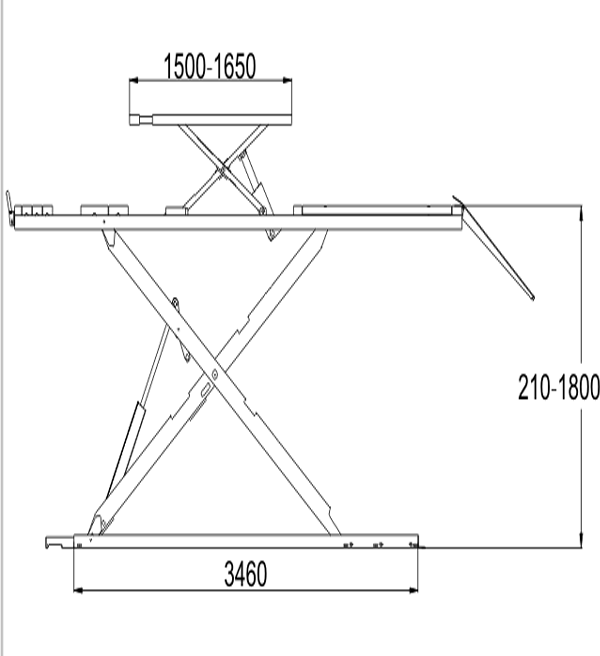

  Packing size and line drawings
