GH6000P SINGLE POST PARKING LIFT

◆2700kg (6600lbs) parking capacity;

◆Save garage parking space;

◆Group GH-6000P can be used as public parking facilities;

◆Solid reliable lifting arm and sliding platform;

◆Manual release at operating position;

◆Operating control system with 24V safety voltage;

◆24V height limit switch provided;

◆Hydraulic pressure pre-setting preventing from lifting vehicle with  exceeding rated loads;

◆Routine testing with 115% dynamic and 150% static loading;

◆CE approved.



·

Technical Specification

Lifting capacity 2700kg/6600Lbs
Lifting height 1900mm
Minimum height 110mm
Overall length 4210mm
Overall width 2680mm
Overall height 2830mm
Lifting time 50sec
Motor power 2.2kW
Power supply 220/380/415V
Noise level 1210kg
Weight 2800*550*400+3900*550*400+1700*750*150
Package size 12
  Details

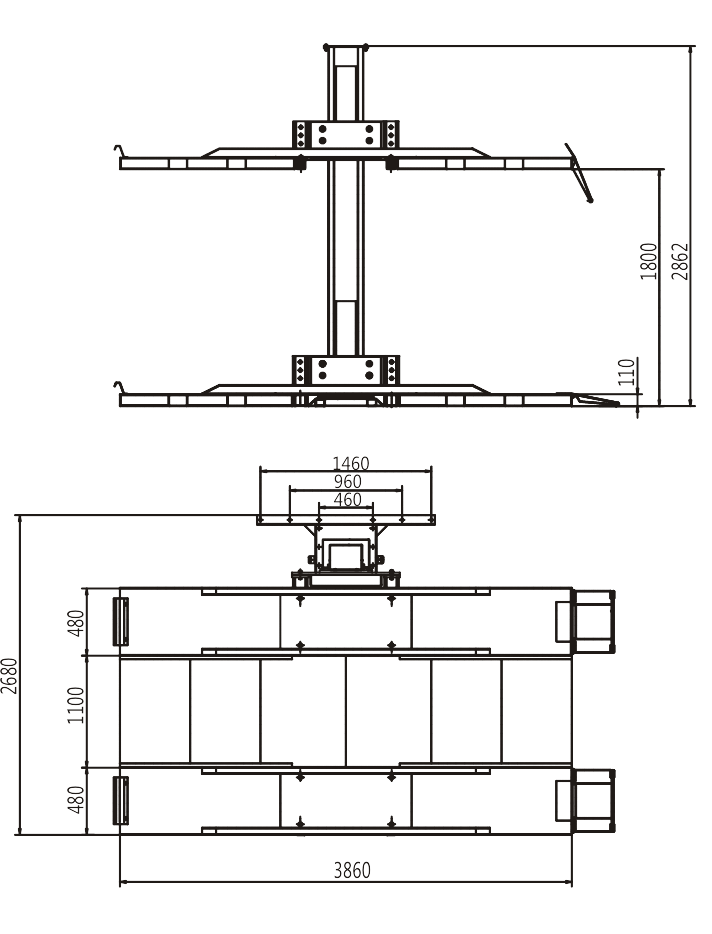

  Packing size and line drawings
